THE VITA
LOAD NAVIGATOR®

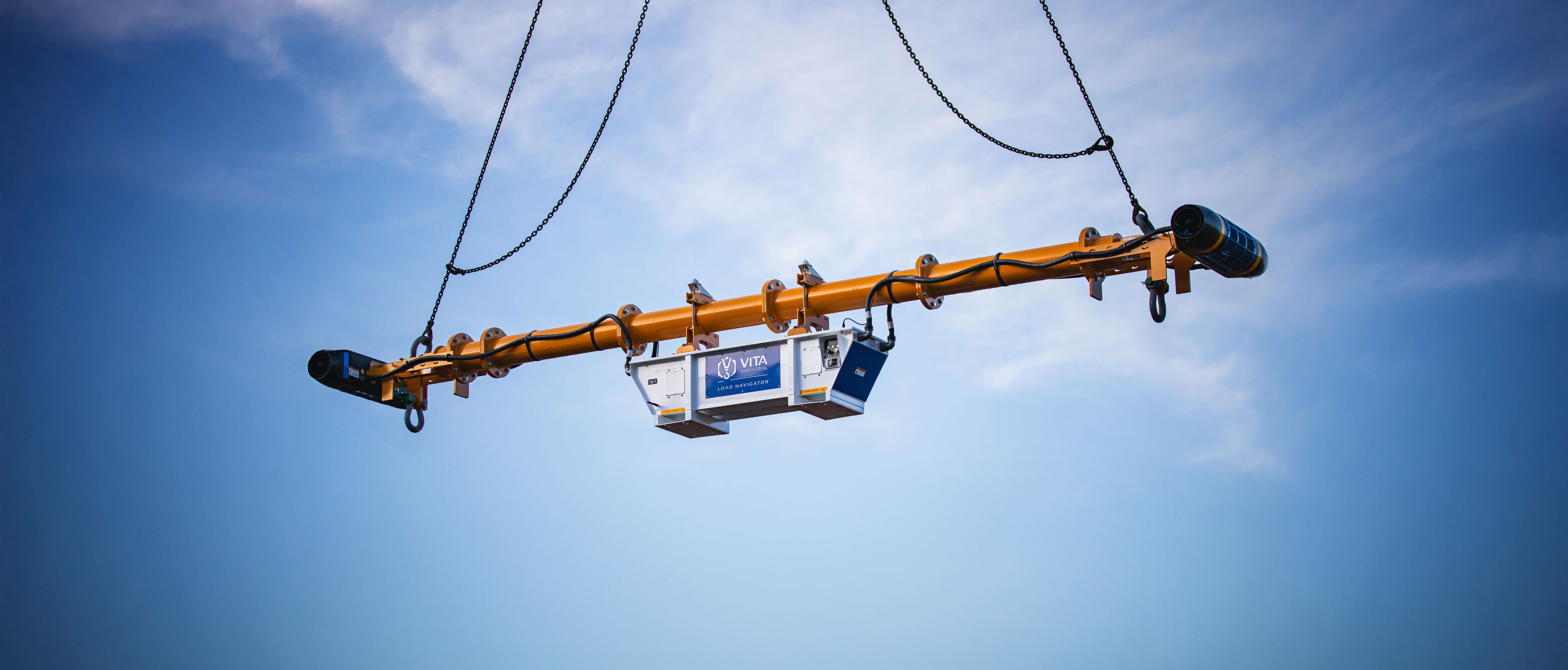

The Vita Load Navigator (VLN) provides a dynamic approach to lifting and moving loads with precision. The semi-autonomous propulsion-driven device connects below the hook of the crane and is remotely controlled. Measuring over 1,000 data points per second, the system detects load movement in real-time and adjusts the load with high-powered fans to eliminate spinning, rotations, and other problems that cause site damage or injuries.

VLN STANDARD MODELS & CONFIGURATIONS

40T-7

40T-11

40T-15

40T-20

VITA LOAD NAVIGATOR -

40T-7

Lift Capacity

40mt

Weight

800kg

Available Tourqe

600Nm

Charging Options

100-240 VAC

Nominal Inertia Rating

130 mt•m2

Charging Time

6-8 hours

Size (LxWxH)

3.3 x 1.2 x 1 m

Ingress Protection

IP65 Equivalent

Remote Pendant Operation

Remotely operate the Vita Load Navigator from a distance of up to 600 ft / 182 m.

Auto Hold

Keep your loads positioned in the hardest of conditions.

Dynamic Speed Control

Speed control adjustable by the operator to rotate the load at their selected speed.

Standby

Quickly toggle between standby and active mode.

Memory Buttons

Record precise lift positions at any time and use them to simplify repetitive lifts with the touch of a button.

VLN STANDARD MODELS & CONFIGURATIONS

40T-7

40T-11

40T-15

40T-20

VITA LOAD NAVIGATOR -

40T-7

Lift Capacity

40mt

Weight

800kg

Available Tourqe

600Nm

Charging Options

100-240 VAC

Nominal Inertia Rating

130 mt•m2

Charging Time

6-8 hours

Size (LxWxH)

3.3 x 1.2 x 1 m

Ingress Protection

IP65 Equivalent

Remote Pendant Operation

Remotely operate the Vita Load Navigator from a distance of up to 600 ft / 182 m.

Auto Hold

Keep your loads positioned in the hardest of conditions.

Dynamic Speed Control

Speed control adjustable by the operator to rotate the load at their selected speed.

Standby

Quickly toggle between standby and active mode.

Memory Buttons

Record precise lift positions at any time and use them to simplify repetitive lifts with the touch of a button.

VLN STANDARD MODELS & CONFIGURATIONS

40T-7

40T-11

40T-15

40T-20

VITA LOAD NAVIGATOR -

40T-7

Lift Capacity

40mt

Weight

800kg

Available Tourqe

600Nm

Charging Options

100-240 VAC

Nominal Inertia Rating

130 mt•m2

Charging Time

6-8 hours

Size (LxWxH)

3.3 x 1.2 x 1 m

Ingress Protection

IP65 Equivalent

Remote Pendant Operation

Remotely operate the Vita Load Navigator from a distance of up to 600 ft / 182 m.

Auto Hold

Keep your loads positioned in the hardest of conditions.

Dynamic Speed Control

Speed control adjustable by the operator to rotate the load at their selected speed.

Standby

Quickly toggle between standby and active mode.

Memory Buttons

Record precise lift positions at any time and use them to simplify repetitive lifts with the touch of a button.

SEE THE VLN IN ACTION

SEE THE VLN IN ACTION

Leading companies depend on advanced technology and products. Let’s explore how we can work together to solve your everyday lifting challenges.
